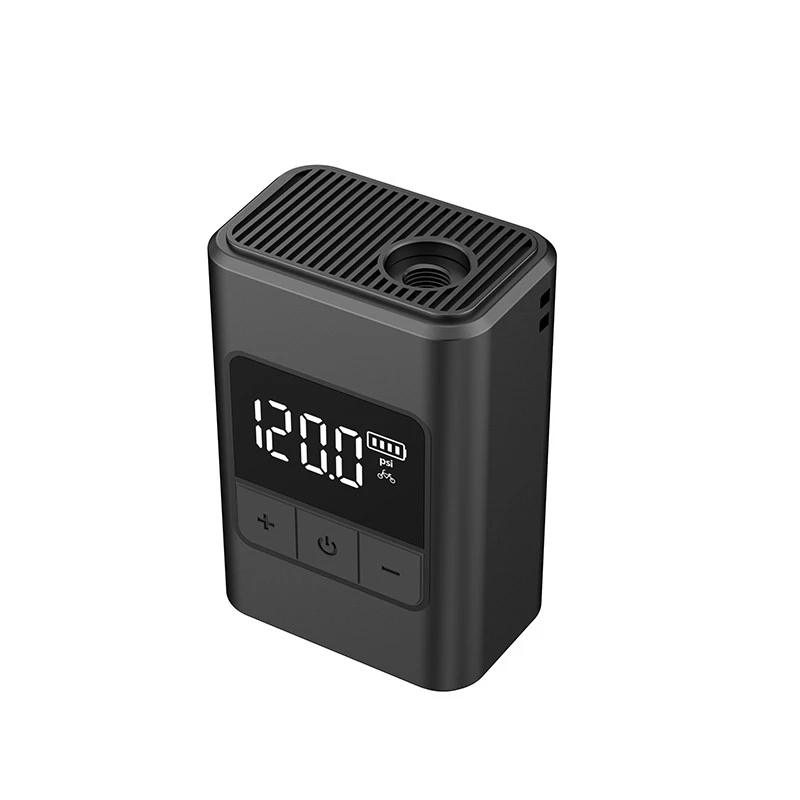

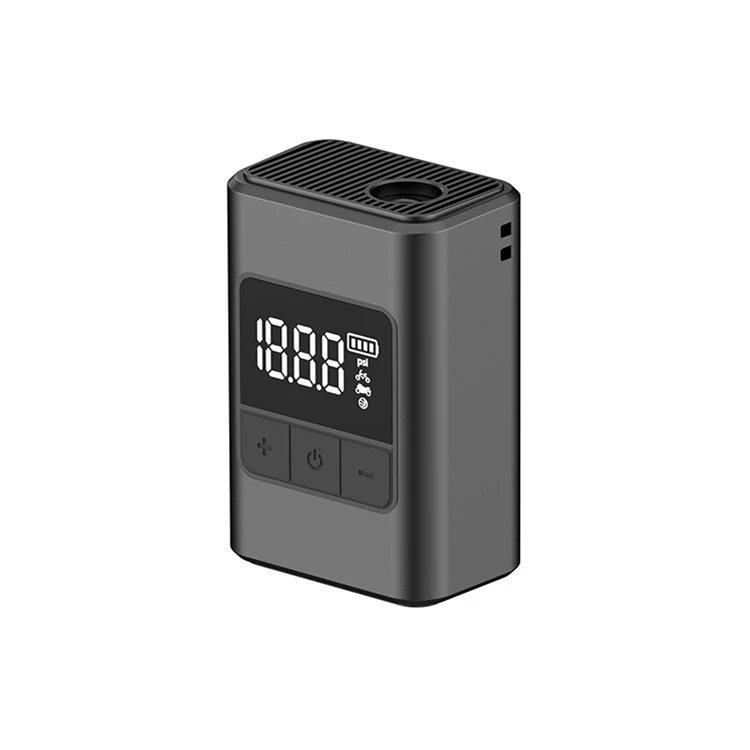

AP02 Portable Bicycle Tire Inflator
AP02 is a compact electric inflator designed for bicycles and everyday small-volume inflation tasks. Powered by a 60W high-speed brushless motor, it delivers up to 120 PSI and supports preset pressure, real-time digital pressure measurement and automatic shutoff. Its lightweight body is suitable for road bikes, mountain bikes, motorcycles, balance bikes, sports balls and golf carts.
Product Features
60W Brushless Motor for Fast High-Pressure Inflation
The 11,500 RPM brushless motor works with an alloy die-cast high-pressure cylinder to deliver up to 120 PSI. Under specified test conditions, it inflates a 700 × 23C road bike tire from 0 to 70 PSI in approximately 50 seconds.
High-Rate Battery for Multiple Inflations
The lithium cobalt oxide polymer battery uses a 20C high-rate discharge design with 2 × 650mAh cells and 4.81Wh of pack energy. A full charge supports approximately seven empty mountain bike tires or three empty road bike tires, with standby time of up to two years.
Preset Pressure with Automatic Shutoff
The automotive-grade digital pressure sensor measures tire pressure in real time. Set the target pressure and the inflator stops automatically when the preset value is reached. Three built-in modes cover bicycles, motorcycles and sports balls, with simple controls for pressure adjustment, mode selection and power.
Multiple Safety Protections with Clear Alerts
The display provides direct status alerts: "HOT" for over-temperature protection, "E07" for low battery or over-current protection, "-10" for low-temperature protection, and "LO" for critically low battery with motor startup disabled.
Multi-Valve Compatibility for Everyday Use

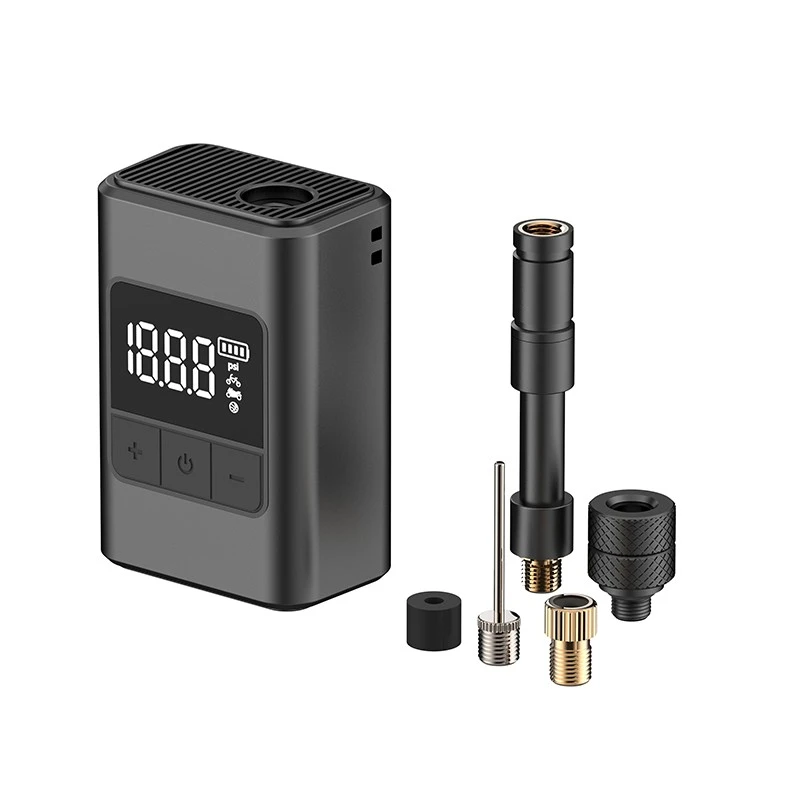

Compatible with Schrader and Presta valves, the inflator also includes a threaded hose and universal ball needle. It supports bicycles, motorcycles, balance bikes, sports balls, golf carts and other compatible inflation tasks.
Compact 160g Design
Measuring only 76 × 51 × 33.8 mm and weighing approximately 160g, AP02 fits easily into a cycling bag or carry-on luggage for riding, commuting and travel.
Product Specifications
|
Specification |
Details |
|
Product Name |
Portable Bicycle Tire Inflator (Brushless Motor) |
|
Model |
AP02 |
|
Battery Type |
Lithium Cobalt Oxide Polymer Battery |
|
Battery Configuration |
2 × 650mAh cells (4.81Wh; 1300mAh nominal combined cell capacity) |
|
Motor Power |
60W |
|
Motor Speed |
11,500 RPM |
|
Operating Voltage |
7.4V |
|
Input |
5V / 1.5A |
|
Maximum Pressure |
120 PSI |
|
Charging Port |
USB Type-C |
|
Product Dimensions |
76 × 51 × 33.8mm |
|
Net Weight |
160g |
|
Color Box Dimensions |
82 × 62 × 56mm |
|
Gross Weight per Set |
220g |
|
Master Carton Dimensions |
325 × 296 × 185mm; 50 sets/carton |
|
Master Carton Weight |
12kg |
|
Standby Time |
Up to 2 years when fully charged |
Inflation Performance per Full Charge
|
Tire Size |
Pressure Range |
Inflation Time |
Inflations per Charge |
|
700C25 |
0–80 PSI |
58 s |
5 |
|
700C25 |
0–100 PSI |
85 s |
3 |
|
700C25 |
0–110 PSI |
106 s |
3 |
|
700C25 |
0–120 PSI |
125 s |
2 |
|
700C28 |
0–80 PSI |
67 s |
4 |
|
700C32 |
0–80 PSI |
105 s |
3 |
|
29 × 2.2 |
0–30 PSI |
55 s |
7 |
|
29 × 2.2 |
30–50 PSI |
57 s |
6 |
|
700C45 |
0–50 PSI |
95 s |
4 |
|
700C45 |
30–50 PSI |
35 s |
7 |
Test results may vary with tire volume, starting pressure, target pressure, ambient temperature and battery condition. The figures above are based on specified test conditions.
Buyer FAQ
Q1. Is AP02 suitable for car tires?
A. AP02 is primarily designed for bicycles, motorcycles, balance bikes, sports balls and other small-volume inflation tasks. The 120 PSI rating is the maximum pressure and does not mean the product is suitable for every high-volume car tire. Buyers should test samples with the intended tire size, starting pressure and target pressure before placing a bulk order.
Q2. Does the approximately 50-second claim apply to every bicycle tire?
A. No. The approximately 50-second result applies to a 700 × 23C road bike tire inflated from 0 to 70 PSI under specified test conditions. Refer to the performance table for other tire sizes and target pressures. Ambient temperature and battery condition may also affect inflation time.
Q3. How many tires can AP02 inflate per full charge?
A. Under specified test conditions, a full charge supports approximately seven empty mountain bike tires or three empty road bike tires. For more accurate estimates, use the performance table based on the actual tire size and pressure range.
Q4. Which valves and inflation applications are supported?
A. AP02 supports Schrader and Presta valves and includes a threaded hose and universal ball needle. It covers common bicycle tires, sports balls and other compatible small inflatables. Buyers should confirm the final accessory list against their target market requirements before ordering.
Q5. How should the battery capacity be stated accurately?
A. The recommended specification is "2 × 650mAh cells, 4.81Wh battery pack energy". The 1300mAh figure is the nominal combined cell capacity. Product pages, packaging and manuals should keep the cell configuration, voltage and Wh rating consistent to avoid specification disputes.
Q6. What happens during over-temperature, low-temperature, over-current or critically low battery conditions?
A. The display shows a status code and activates protection: "HOT" for over-temperature, "E07" for low battery or over-current, "-10" for low temperature, and "LO" for critically low battery with motor startup disabled. Buyers can include these alerts in user instructions and after-sales training to reduce incorrect fault reports.
